JSch多层跳板机执行远程命令

Posted by youthred on August 8, 2023

仿照 JSch官网JumpHosts示例代码 编写工具类

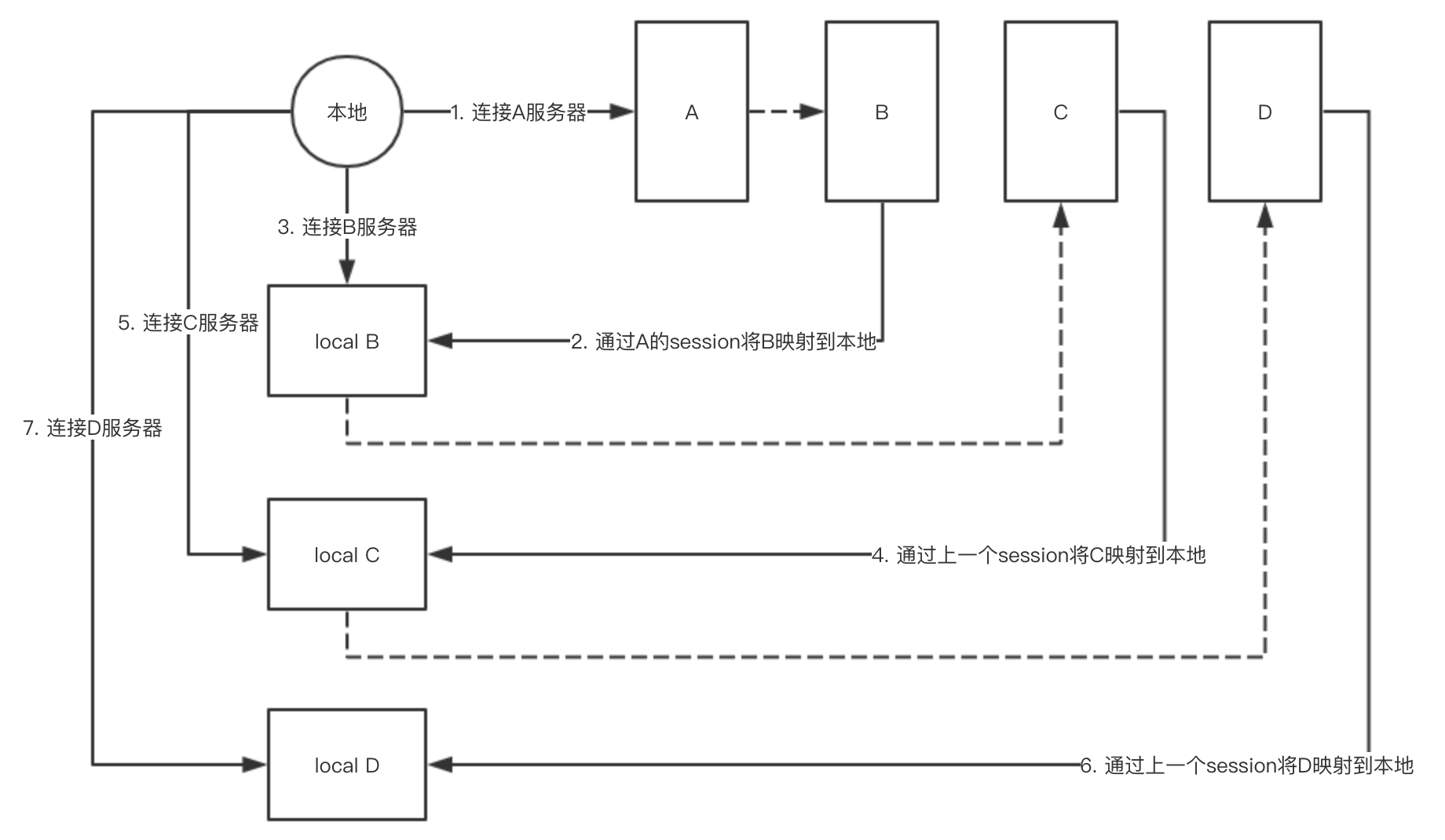

JSchJumpHosts

POM dependencies

  • 需要注意的是,至本片文章编写之日,JSch 版本 0.1.53 及以下都已发现 漏洞 。最新 0.1.55 无漏洞。
1
2
3
4
5
6
7
8
9
10
11
12
13
<dependency>
    <groupId>org.apache.commons</groupId>
    <artifactId>commons-collections4</artifactId>
</dependency>
<dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
</dependency>
<dependency>
    <groupId>com.jcraft</groupId>
    <artifactId>jsch</artifactId>
    <version>0.1.55</version>
</dependency>

工具代码

  • SshForward.java SSH映射
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
package jumphosts;

import cn.hutool.extra.ssh.JschUtil;
import com.jcraft.jsch.Session;
import org.apache.commons.lang3.ArrayUtils;
import org.apache.commons.lang3.StringUtils;

import java.nio.charset.StandardCharsets;
import java.util.List;

/**
 * SSH映射
 *
 * @author https://github.com/youthred
 */
public class SshForward implements AutoCloseable {

    private Session[] sessions;

    private SshForward() {
    }

    public SshForward(Session[] sessions) {
        this.sessions = sessions;
    }

    public SshForward(List<SshHost> hosts) {
        this.sessions = SshUtil.getSessions(hosts);
    }

    /**
     * 获取跳板机Session数组
     * <p>
     * [0]: first session
     * [-1]: target session
     *
     * @return Session[]
     */
    public Session[] getSessions() {
        return sessions;
    }

    /**
     * 获取目标主机Session
     *
     * @return target session
     */
    public Session getTarget() {
        if (ArrayUtils.isNotEmpty(sessions)) {
            return sessions[sessions.length - 1];
        }
        return null;
    }

    /**
     * 在目标主机上执行命令,并返回控制台打印信息
     *
     * @param cmd Linux命令
     * @return 执行打印
     */
    public String exec(String cmd) {
        if (StringUtils.isNotBlank(cmd)) {
            return JschUtil.exec(getTarget(), cmd, StandardCharsets.UTF_8);
        }
        return null;
    }

    /**
     * 在目标主机上执行命令,并返回控制台打印信息
     *
     * @param cmds Linux命令
     * @return 执行打印
     */
    public String[] exec(String... cmds) {
        if (ArrayUtils.isNotEmpty(cmds)) {
            String[] resultPrints = new String[cmds.length];
            for (int i = 0; i < cmds.length; i++) {
                resultPrints[i] = JschUtil.exec(getTarget(), cmds[i], StandardCharsets.UTF_8);
            }
            return resultPrints;
        }
        return null;
    }

    /**
     * 后入先出地依次关闭session连接
     */
    @Override
    public void close() {
        if (ArrayUtils.isNotEmpty(sessions)) {
            for (int i = sessions.length - 1; i >= 0; i--) {
                try {
                    sessions[i].disconnect();
                } catch (Throwable ignored) {
                }
            }
        }
    }
}
  • SshUtil.java 工具
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
package jumphosts;

import com.jcraft.jsch.JSch;
import com.jcraft.jsch.JSchException;
import com.jcraft.jsch.Session;
import org.apache.commons.collections4.CollectionUtils;

import java.util.List;

/**
 * @author https://github.com/youthred
 */
public class SshUtil {

    public static Session[] getSessions(List<SshHost> hosts) {
        if (CollectionUtils.isEmpty(hosts)) {
            return null;
        }
        Session[] sessions = null;
        try {
            JSch jsch = new JSch();
            // jsch.addIdentity("~/.ssh/id_rsa");
            sessions = new Session[hosts.size()];
            Session session = null;
            for (int i = 0; i < hosts.size(); i++) {
                SshHost host = hosts.get(i);
                if (i == 0) {
                    session = jsch.getSession(host.getUsername(), host.getIp(), host.getPort());
                } else {
                    int assignedPort = session.setPortForwardingL(0, host.getIp(), host.getPort());
                    session = jsch.getSession(host.getUsername(), "127.0.0.1", assignedPort);
                }
                session.setPassword(host.getPassword());
                session.setConfig("StrictHostKeyChecking", "no");
                session.connect();
                sessions[i] = session;
            }
        } catch (JSchException e) {
            e.printStackTrace();
        }
        return sessions;
    }
}
  • SshHost.java SSH连接参数
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package jumphosts;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.experimental.Accessors;

/**
 * SSH 连接参数对象
 *
 * @author https://github.com/youthred
 */
@Data
@Accessors(chain = true)
@NoArgsConstructor
@AllArgsConstructor
public class SshHost {

    private String ip;
    private Integer port;
    private String username;
    private String password;

    public SshHost(String ip, String username, String password) {
        this(ip, 22, username, password);
    }
}

使用

1
2
3
4
5
6
7
8
List<SshHost> hosts = new ArrayList<>(3);
hosts.add(new SshHost("1.2.3.4", "u", "p"));
hosts.add(new SshHost("2.3.4.5", "u", "p"));
hosts.add(new SshHost("3.4.5.6", "u", "p"));
try (SshForward forward = new SshForward(hosts)) {
    String[] exec = forward.exec("pwd", "ifconfig");
    Arrays.stream(exec).forEach(System.out::println);
}
